technical parameter
| technical parameter | ||
|
| ICM7100-121
| ICM7100-080 |
| Working temperature | -30~70℃ | -30~70℃ |
| Storage temperature | -40~80℃ | -40~80℃ |
| Working voltage | 8~36V | 8~36V |
| Working current | 1000mA@24VDC | 800mA@24VDC |
| Liquid crystal | 12.1inch，24bit，600cd/m²，Res.1024×768 | 8inch，24bit，600cd/m²，Res.1024×600 |
| Touch | Multi touch support | Multi touch support |
| Key interface | - | 8 |
| CPU | i.MX6，64bit，1GHz main frequency | i.MX6，64bit，1GHz main frequency |
| Program + data space | 8GB eMMC | 8GB eMMC |
| Memory | 1GB DDR3 | 1GB DDR3 |
| Parameter configuration | 32KB FRAM | 32KB FRAM |
| Audio and video | 1 channel audio interface output;4 channel video input (NTSC / PAL) | 1 channel audio interface output; 2 channel video input (NTSC / PAL) |
| Buzzer | 支持 | 支持 |
| Communication | 2×CAN2.0B；1×USB；1×Ethernet（RJ45）；Wi-Fi/BT | 2×CAN2.0B；1×USB；1×Ethernet（RJ45）；Wi-Fi/BT |
| Installation mode | Spoort rack or embedded mounting | Spoort rack or embedded mounting |
| Housing material | ABS+PC | ABS+PC |
| Protection grade | IP66 | IP65 |

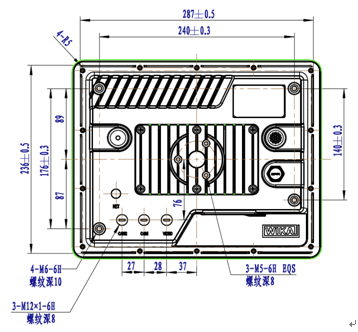

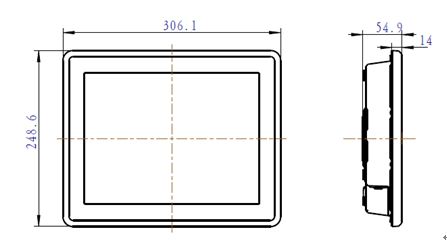

Installation dimension
