        The ICP6600 series interactive graphic monitor is specially designed for mobile machines. It has a variety of display sizes and resolutions with flash animation supported. The visualizations are vivid and realistic. The monitor also includes userfriendly interface with rapid-response touchscreen, multifunction buttons and knobs to meet different requirements for machinery. The development and production processes of ICP6600 series monitors follows the automobile-industry standards. The characteristics with anti-vibration, anti-shock and IP66 protection level are suitable for mobile machinery working in harsh environments.

      The various function modules can provide with multiple and flexible operation modes. For example, video input interface can be used for monitoring the working status of key components in real time. The GPS/GPRS module for navigation and remote monitoring is also available through the internal extension slot.

      In addition, ICP6600 series interactive graphics monitor provides USB2.0B standard interface and Micro SD card slot. The data transfer ports make it have the capability to perform remote field upgrade.
Features
l Display size 5.7", 7", 8.4", 10.4"
l Built-in or external, and can be equipped with Sunshield
l Support flash animation
l With CAN, Ethernet, RS232 and USB interface
l Support video input, audio input and output
l Support Micro SD card, GPS/GPRS

User-friendly Interface
l Development for mobile machinery, comfort and easy operation
l Ergonomic design
l Projected Capacitive Touch screen with multifunction buttons and keys
l LED Backlight
l Real-time multitasking operating system, stable and fast

Model Number Definition

Dimensions
 057  5.7 inch
 070  7.0 inch
 084  8.4 inch
 104  10.4 inch
Orientation
 H  Horizontal screen
 null  Horizontal screen
Configuration
 T  Touch screen
 C  Audio and video function
 TC  Touch,audio and video function
 Null  No touch,audio and video function

Technical Specification

Description ICP6600057xxx ICP6600070xxx ICP6600084xx ICP6600104xx
Display
Resolution
Screen Size
Display Colors
TFT LED display TFT LED display TFT LED display TFT LED display
640*480 800*480 800*600 800*600
5.7 inch 7 inch 8.4 inch 10.4 inch
18-bit color 18-bit color 18-bit color 18-bit color
Buttons 5 Function Buttons 5 Function Buttons 8 Function Buttons 8 Function Buttons
1 Spin Button 1 Spin Button - -
Video Signal Input - 2 4 4
Touchscreen Projected Capacitive Touch Projected Capacitive Touch Projected Capacitive Touch Projected Capacitive Touch
Case Material ABS+PC ABS+PC ABS+PC ABS+PC
Protect Level IP66 IP66 IP66 IP66
Operating temperature -30°~+70° -30°~+70° -30°~+70° -30°~+70°
Storage temperature -40°~+80° -40°~+80° -40°~+80° -40°~+80°
Operating voltage 9V DC~32V DC 9V DC~32V DC 9V DC~32V DC 9V DC~32V DC
Current consumption 300mA@24V DC 300mA@24V DC 300mA@24V DC 300mA@24V DC
CPU 32bit 400MHz 32bit 400MHz 32bit 400MHz 32bit 400MHz
NorFlash 64MB NorFlash 64MB NorFlash 64MB NorFlash 64MB NorFlash
NandFlash 1GB NandFlash 1GB NandFlash 1GB NandFlash 1GB NandFlash
Memory 512M RAM 512M RAM 512M RAM 512M RAM
EEPROM 4KB EEPROM 4KB EEPROM 4KB EEPROM 4KB EEPROM
Buzzer
RTC
WatchDog
Operation System Embedded QNX 6.5
Programming Software Flash Development
Interface Description
CAN 2×CAN 2.0 A/B
50Kbit/s…1Mbit/s
ETHERNET 10/100 Mbit/s
SERIAL 2×RS232
USB USB 2.0
Micro SD card Max. 4GB
VIDEO IN CVBS
AUDIO Line out, Line in, mic in
Test Standard
EMC EN 61000-6-4:2007
EN 61000-6-2:2005
Vibration GB/T 2423.10-2008
Shock GB/T 2423.5-1995
Humidity GB/T 2423.3-2006
High & Low Temperature GB/T2423.1-2008
GB/T2423.2-2008

ROUTINE Product Ordering

Model Order No. Screen Size Touchscreen Audio/Video
ICP6600-057H 209966 5.7 × ×
ICP6600-057HT 209967 5.7 ×
ICP6600-070H 209969 7.0 × ×
ICP6600-070HC 211737 7.0 ×
ICP6600-070HT 211738 7.0 ×
ICP6600-070HTC 209970 7.0
ICP6600-084 209972 8.4 × ×
ICP6600-084C 211739 8.4 ×
ICP6600-084T 209977 8.4 ×
ICP6600-084TC 209977 8.4
ICP6600-104 209973 8.4 × ×
ICP6600-104C 209975 10.4 ×
ICP6600-104T 211740 10.4 ×
ICP6600-104TC 211741 10.4

Human-Computer Interaction Moves as one desires

l Program Upgrade
l Debugging Panel
l Virtual Protection
l Troubleshooting
l Job Aids
l Parameter Display
l Support tools
l Operations Management
l Smart Work Mode
l Redundant System

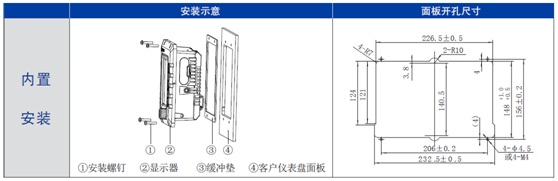

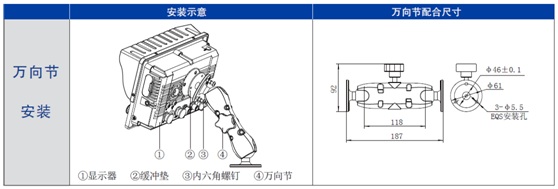

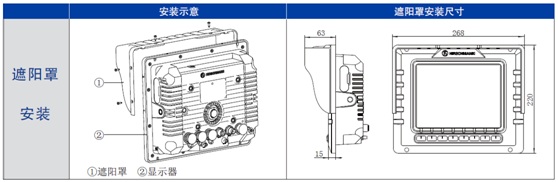

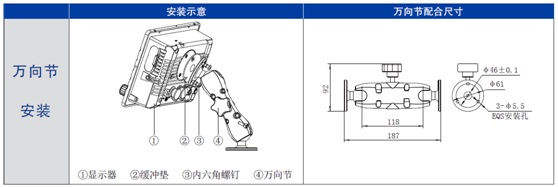

Monitor Mechanical Dimensions and Installation

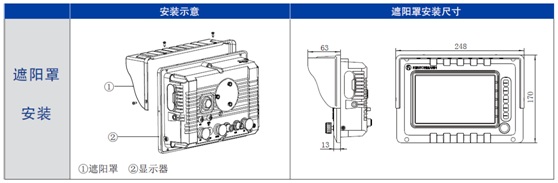

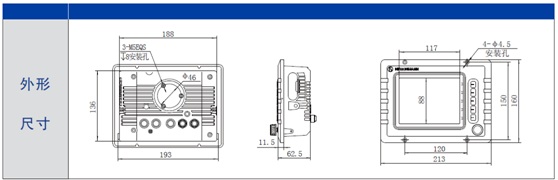

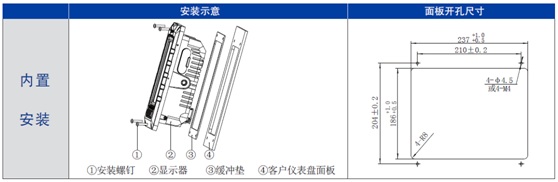

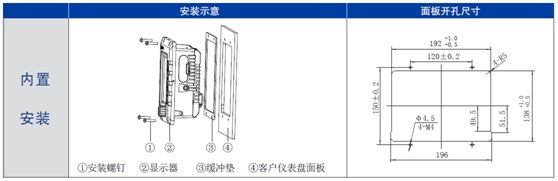

ICP6600-057 Monitor Mechanical Dimensions and Installation

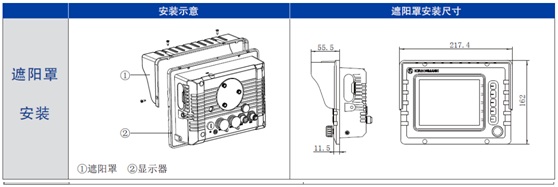

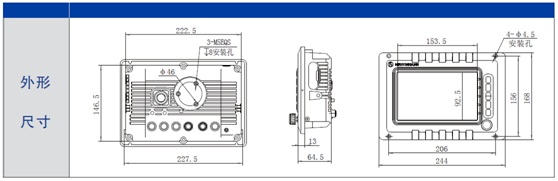

ICP6600-070 Monitor Mechanical Dimensions and Installation

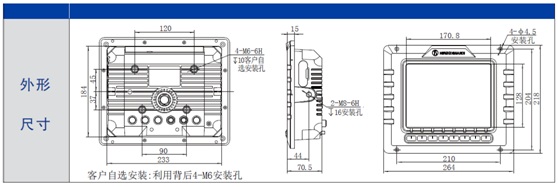

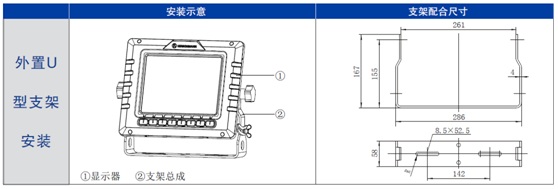

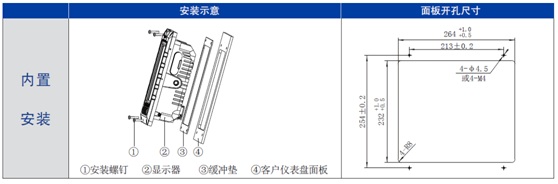

ICP6600-084 Monitor Mechanical Dimensions and Installation

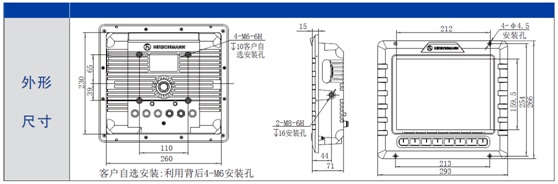

ICP6600-104 Monitor Mechanical Dimensions and Installation
