ICM7100-123H console is a fullLCD instrument display specially designed for large-scale mobile machinery. Itis designed with indicator light group, USB interface, key and other functionalinterfaces in accordance with ISO7000 standard. It can not only meet all thefunctional requirements of traditional loading instruments, but also supportsflexible programming. It is convenient for customers to develop customizedinterface for different models and functions of vehicles.


The main application of this product: heavytruck instrument, large mining truck instrument, large crane chassisinstrument, etc.


technical parameter

Working temperature

-30~70℃

Storage temperature

-40~85℃

Working voltage

8~36V

Effective view angle of liquid crystal

-85°~+85°

Screen size

12.3 inch

Resolution

1920（H）× 3 (RGB) × 720(V)

CPU

i.MX6，64bit，1GHz main frequency

Brightness

≥ 700 cd/㎡

Contrast ratio

1100:1

Program + data space

4GB，EMMC

Memory

1GB

Parameter configuration

32KB

RTC

Error <12 minute /year

Protection grade

IP65

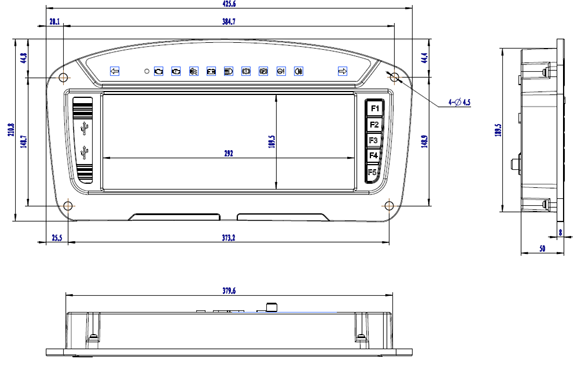

Installation dimension
