| Special sensors features for port and marine
|
|

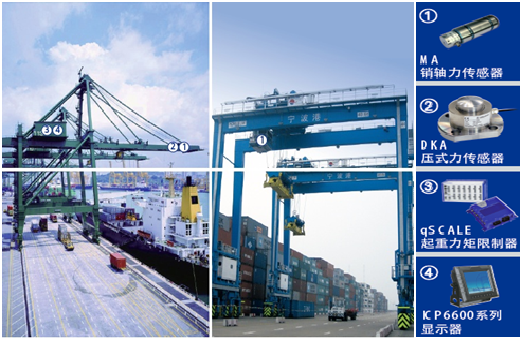

Container crane load safety system
| |
products functions
| products features
|

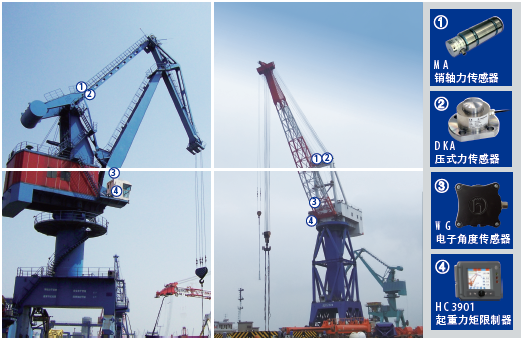

Load safety system for portal crane
| |
products functions
| products features
|
Deck ship crane load safety system
| |
products functions
| products features
|

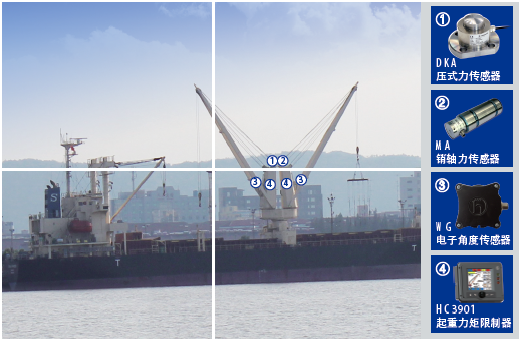

Load safety system for Marine floating crane
| |
products functions
| products features
|
Sensor technical parameters
Description | Shear pin MA | Force sensor KMD | Load pin DKA | electronic angle sensor WG |
|
|
|
|
|
Rated load range | 10-5000kN | 10-10000kN | 10-3000kN | 0-360· |
Precision grade | 1 | 0.3 | 0.3 | 0.15 |
Measuring body linear range | 200% | 200% | 200% | - |
easurement of plastic deformation point | 300% | 300% | 300% | - |
Fracture point | 500% | 500% | 500% | - |
working temperature | -40℃~+70℃ | -40℃~+70℃ | -40℃~+80℃ | -40℃~+85℃ |
Protection grade(IEC6059) | IP65(可选IP67) | IP65(可选IP67) | IP67(可选IP69K) | IP66 |
working voltage | 10V~30V DC | 10V~30V DC | 10V~30V DC | 9V~36V DC |
Working current | ≤45mA | ≤45mA | ≤45mA | ≤30mA |
Full bridge strain gauge | 4x700Ohm | 4x350Ohm | 8x350Ohm |
|
Output signal | 4~20mA CANopen 2.5~7.5VDC 0~-1V
| 4~20mA CANopen 2.5~7.5VDC 0~-1V
| 4~20mA CANopen 2.5~7.5VDC 0~-1V
| CANopen
|
temperature drift | 0.1%/10·K | 0.1%/10·K | 0.1%/10·K | ±0.004°/K |
Linear error | 〈1% | 〈0.3% | 〈0.3% | 0.3· |
Lag error | 〈1% | 〈0.15% | 〈0.15% | - |
housing | Stainless steel | Stainless steel | Stainless steel | aluminium |
connector | M12x1 | M12x1 | M12x1 | M12x1 |
Climate test | EN60068-2-30,DB55℃/100% | EN60068-2-30,DB55℃/100% | EN60068-2-30,DB55℃/100% | EN60068-2-30,DB55℃/100% |
Shockproof | EN60068-2-6 5-500HZ,50g,10mm | EN60068-2-6 5-500HZ,50g,10mm | EN60068-2-6 5-500HZ,50g,10mm | EN60068-2-6 5-500HZ,50g,10mm |
Anti shock | EN60068-2-27(half sine) 50g,11ms,1000shocks 1000g,1ms,50shocks | EN60068-2-27(half sine)50g,11ms,1000shocks1000g,1ms,50shocks | EN60068-2-27(half sine) 50g,11ms,1000shocks 1000g,1ms,50shocks | EN60068-2-27(half sine) 100g,6ms。1/2sin |
EN13849-1 | Customizable PLd sensorPLd传感器 |
