technical parameter
technical parameter | |
Display size | 4.3 inch |
resolution | 480x272 |
Key interface | 8个 |
Working voltage range | 8~36V |
Maximum working current | 200mA |
Working temperature | -30~70℃ |
Storage temperature | -40~80℃ |
processor | 32bit 180MHz |
Program space | 2MB |
Program storage | 2MB |
data storage | 256MB |
Memory space | 32MB |
Parameter configuration | 32KB |
Programming mode | C |
Protection grade | IP65 |
communication interface | 1×CAN2.0B,1×USB2.0 |

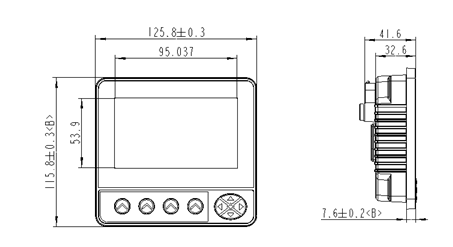

Dimensions | 115.8(H)x125.8(W)x41.6(T) |

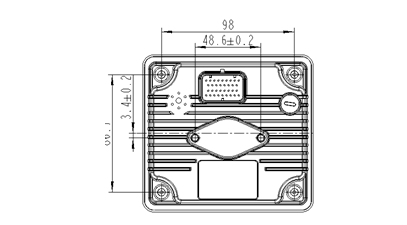

Installation dimension
