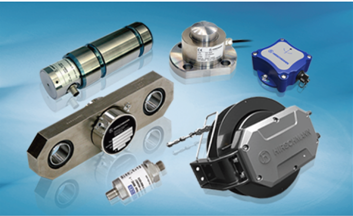

产品系列
| | |
| | |
技术参数

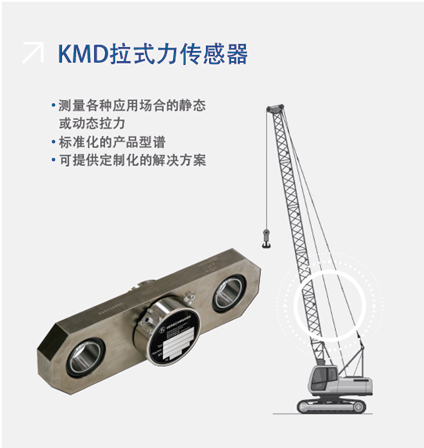

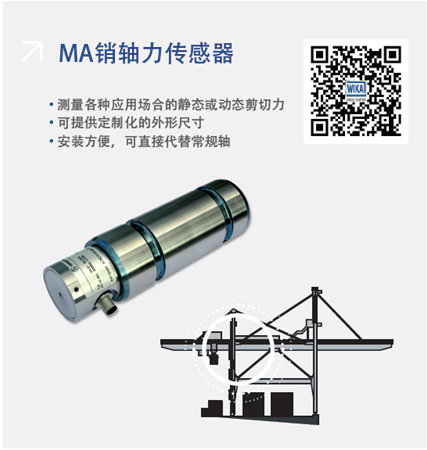

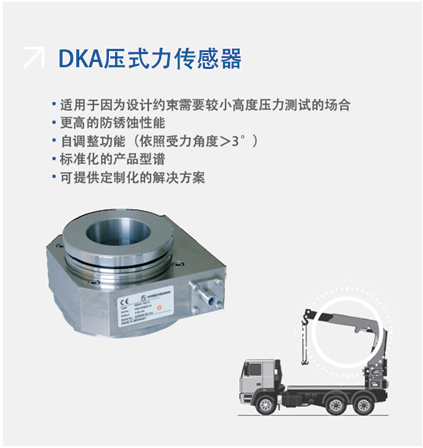

| 描述 | KMD | MA | DKA |
| |  |  |  |
| 测量范围* | 10~16000kN | 10~5000kN | 10~3000kN |
| 精度 * | ＜0.3% FS | ＜0.5～1%FS | ＜0.3% FS |
| 工作温度 | -40~ +85℃ | ||
| 防护等级（IEC60529） | IP66/IP67 | ||
| 工作电压 | 10~30V DC | ||
| 电流消耗 | ＜50 mA (incl. amplifier) | ||
| 输出信号 | 4…20 mA,CANopen, CANopen Safety, 2.5…7.5V DC | ||
| 安全过载* | （150%）200% of nominal load | ||
| 测量体塑变点* | （200%）300% of nominal load | ||
| 断裂点* | （300%）500% of nominal load | ||
| 温度漂移 | 0.1%/10K | 0.1%/10K | 0.1%/10K |
| 线性误差 * | ＜0.3% FS | ＜0.5～1%FS | ＜0.3% FS |
| 滞后误差 * | ＜0.5% FS | ＜1%FS | ＜0.5% FS |
| 接头 * | M12 or CANNON | M12 or CANNON | M12 or CANNON |
| 材料 | 不锈钢 | ||
| 气候测试 | EN60068-2-30,DB55℃/100% | ||
| 防震 | EN60068-2-6, 5-500Hz,50g,10min | ||
| 防冲击 | EN60068-2-27(half sine) 50g,11ms,1000shocks, 1000g,1ms,50shocks | ||
| EN13849-1 | 可定制PL,MTTFd和DC | ||
资质认证
